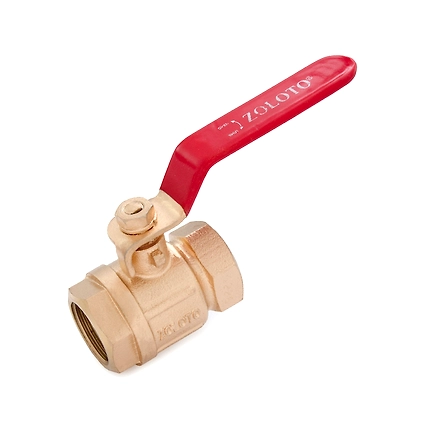

Salient Features
* Screwed Female Ends to IS 554 / BS 21 / ISO 7.
* Full Bore, Two Piece Design.
*Quarter Turn, Lever Operated.
* Provided with Stainless Steel Ball.
* Premium Quality PTFE Gland Packing and Seating.
Test Pressure (Hydrostatic) :
Shell : 25 kg/cm²g (350 psig)
Seat : 16 kg/cm²g (225 psig)
Maximum Working Temperature : 220°C
Suitable For
Water, Oil.
Sizes / Dimensions
| Size (Inches) | Size(mm) | A ±1.5 | B | C ~ | D ~ |
| 1/2* | 15* | 60 | 1/2" | 44 | 105 |
| 3/4* | 20* | 66 | 3/4" | 48 | 123 |
| 1* | 25* | 73 | 1* | 58 | 123 |
| 11/4 | 32 | 91 | 1 1/4* | 73 |
148 |
| 1 1/2 | 40 | 91 | 1 1/2* | 80 | 178 |
| 2 | 50 | 117 | 2* | 85 | 213 |
| 2 1/2 | 65 | 135 | 2 1/2* | 110 | 245 |
| 3 | 80 | 162 | 3* | 116 | 330 |
| 4 | 100 | 201 | 4* | 139 | 330 |
Materials
| P.No. | Name of part | Material of Construction | Specification | Quantity |
| 1 | Body | Bronze | IS 318 GR. LTB 2 | 1 |
| 2 | Bonnet | Bronze / Forged Brass | IS 318 GR. LTB 2 / IS 6912 Gr. FLB |
1 |
| 3 | Ball | Stainless Steel | ASTM A276 Type 304 / ASTM A351 Gr. CF8 |
1 |
| 4 | Body Seat Ring | PTFE | – – – | 2 |
| 5 | Thrust Washer | PTFE | – – – | 1 |
| 6 | Gland Packing | PTFE | – – – | _ |
| 7 | Stem | Stainless Steel | ASTM A276 Type 410 | 1 |
| 8 | Gland | Forged Brass | IS 6912 Gr. FLB | 1 |
| 9 | Lever | Mild Steel | – – – | 1 |
| 10 | Nut | Carbon Steel | – – – | 1 |
