Product is not available

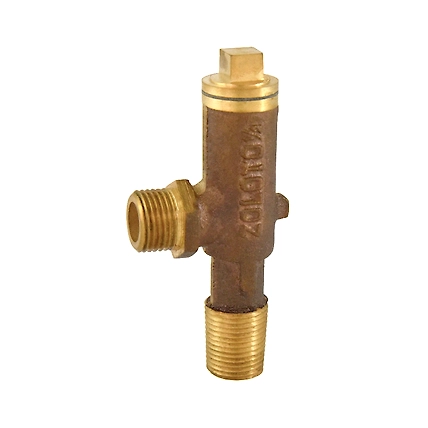

Salient Features
*Screwed Male Ends (Inlet to BSPT and Outlet to BSP) to IS 554 / BS 21 / ISO 7.
*Medium Pattern, Rough Body, Full Flow.
*Metal to Metal contact seating.
*Can withstand heavy impact of water as well as tolerance of
sudden pressure.
Test Pressure (Hydrostatic) :
Shell : 20 kg/cm²g (285 psig)
Seat : 13.5 kg/cm²g (192 psig)
Maximum Working Temperature : 225°C
Suitable For
Water
Materials
| P.No. | Name of Part | Material of Construction | Specification | Quantity |
| 1 | Body | Bronze | IS 318 Gr. LTB 2 | 1 |
| 2 | Plug | Bronze | IS 318 Gr. LTB 2 | 1 |
| 3 | Joint Washer | Leather | – – – | 1 |
| 4 | Cap | Bronze | IS 318 Gr. LTB 2 | 1 |
Sizes / Dimensions
| Size (Inches) | Size (mm) | A ±5 | B ±5 | C | D |
| 1/4 | 8 | 57 | 35 | 1/4" | 1/4" |
| 3/8 | 10 | 60 | 36 | 3/8" | 3/8" |
| 1/2 | 15 | 57 | 37 | 1/2" | 1/2" |
