Salient Features
*Flanged Ends to DIN 2533 PN 16RF.

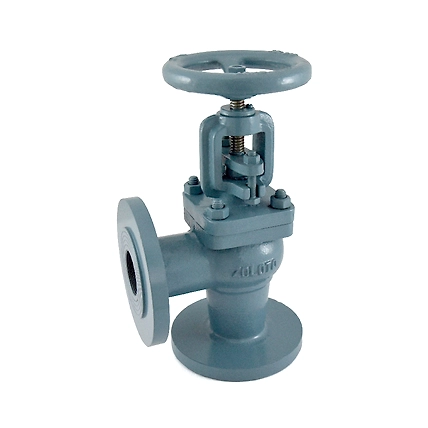

*Angle Pattern, Outside Screw, Yoke Type, Rising Stem.
*Renewable 13% Cr. Stainless Steel (S.S 410) working parts.
*Provision for re-packing under pressure.
*Minimum pressure drop inside the body due to streamlined body design.
*High lift of the seat to avoid any obstruction in the flow.
*Sturdy and comparatively bigger sized wheel provided to give sufficient torque for easy
operation.
Test Pressure (Hydrostatic) :
Shell : 26 kg/cm²g (370 psig)
Working Pressure (Steam) : 13 kg/cm²g (185 psig)
Maximum Working Temperature : 220°C
Suitable For
Steam, Water
Materials
| P.No. | Name of Part | Material of Construction | Specification | Quantity |
| 1 | Nut | Carbon Steel | 1 | |
| 2 | Washer | Carbon Steel | 1 | |
| 3 | Handwheel | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 4 | Stem | Stainless Steel | ASTM 276 Type 410 | 1 |
| 5 | Yoke Bush | Bronze | IS 318 Gr. LTB 2 | 1 |
| 6 | Locking Screw | Screw Carbon Steel | 1 | |
| 7 | Gland Flange | Cast Iron | IBR 86-93 Gr. A | 1 |
| 8 | Bonnet | Cast Iron | IBR 86-93 Gr. A | 1 |
| 9 | Gland Packing | Braided Graphited Asbestos | IS 4687 | _ |
Sizes / Dimensions
| Size (Inches) | Size (mm) | A±1.5 | B ~ | ØC ~ |
| 1/2 | 15 | 90 | 150 | 96 |
| 3/4 | 20 | 95 | 154 | 96 |
| 1 | 25 | 100 | 162 | 118 |
| 1 1/4 | 32 | 105 | 176 | 118 |
| 1 1/2 | 40 | 115 | 204 | 150 |
| 2 | 50 | 125 | 223 | 150 |
| 2 1/2 | 65 | 145 | 250 | 180 |
