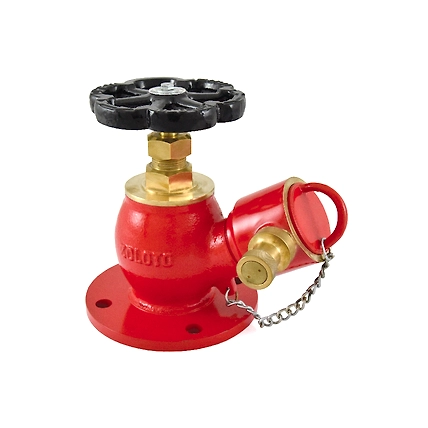

Salient Features
* Design Standard IS 5290.
* Confirming to Type A specification.
* Screwed in Bonnet having instantaneous coupling with single outlet.
* PTFE Gland Packing for longer life and smooth operation of stem.
* Large flow way area to get full flow of water.
* Leakage proof by virtue of elastomer seat.
* Smooth operation of blank cap for quick mounting of water pipe.
* Life long rust free service.
Test Pressure (Hydrostatic) :
Shell : 21 kg/cm²g (300 psig)
Seat : 14 kg/cm²g (200 psig)
Maximum Working Temperature : 110°C
Suitable For
Water
Materials
| P.No. | Name of Part | Material of Construction | Specification | Qty. |
| 1 | Body | Bronze | IS 318 Gr. LTB 2 | 1 |
| 2 | Spilt Pin | Brass | – – – | 1 |
| 3 | Disc Nut | Bronze | IS 318 Gr. LTB 2 | 1 |
| 4 | Washer | Bronze | IS 318 Gr. LTB 2 | 1 |
| 5 | Disc Washer | Rubber | IS 937 | 1 |
| 6 | Disc Holder | Bronze | IS 318 Gr. LTB 2 | 1 |
| 7 | Check Nut | Bronze | IS 318 Gr. LTB 2 | 1 |
| 8 | Stem | Brass | IS 319 | 1 |
| 9 | Bonnet | Bronze | IS 319 | 1 |
| 10 | Gland Packing | Asbestos Thread | – – – | _ |
Sizes / Dimensions
| Size (Inches) | Size (mm) | ØA | ØB | C +3 | D ~ | ØE ~ |
| 3 | 80 | 75 | 200 | 12 | 240 | 150 |
